SUE - Union Elbows
Description
Description

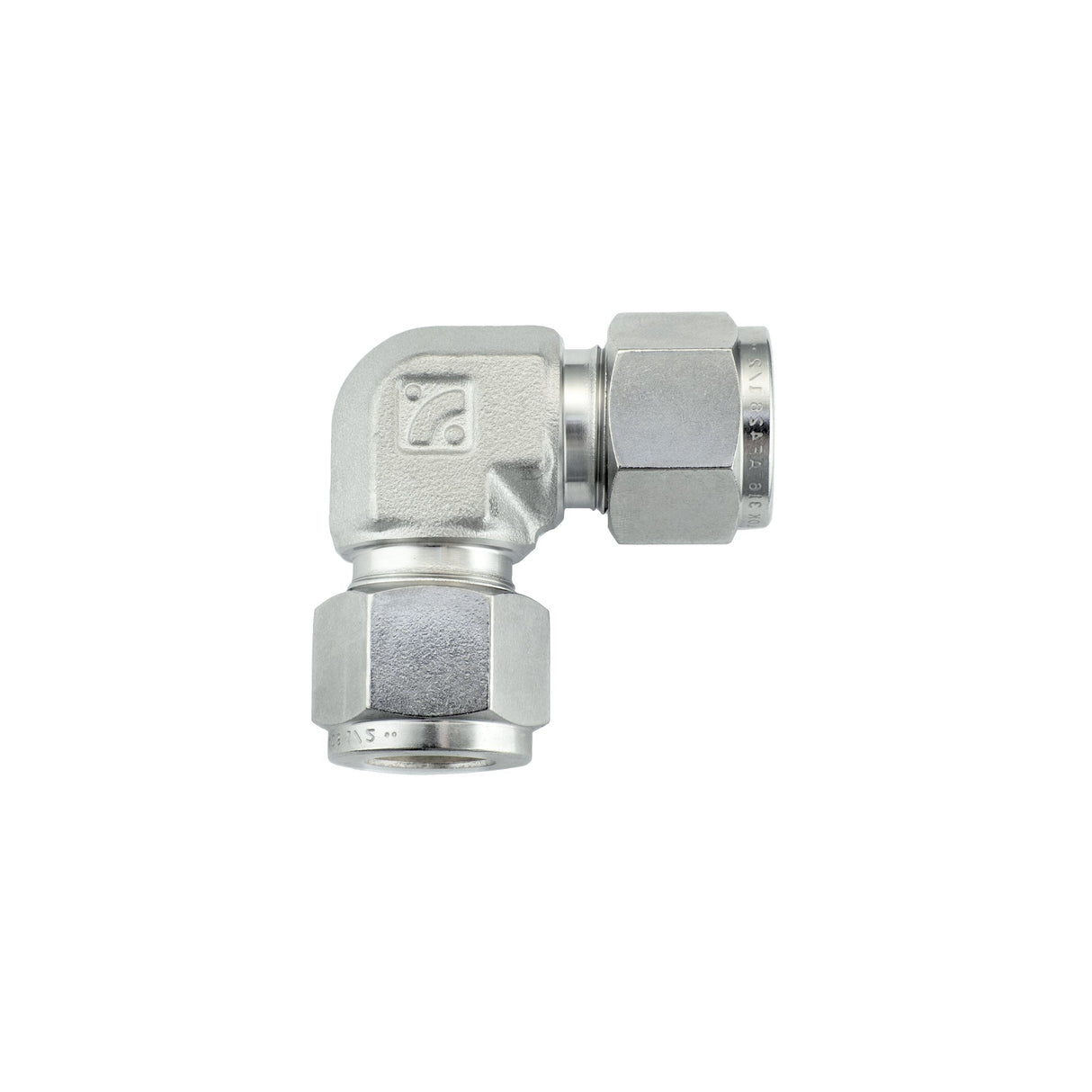

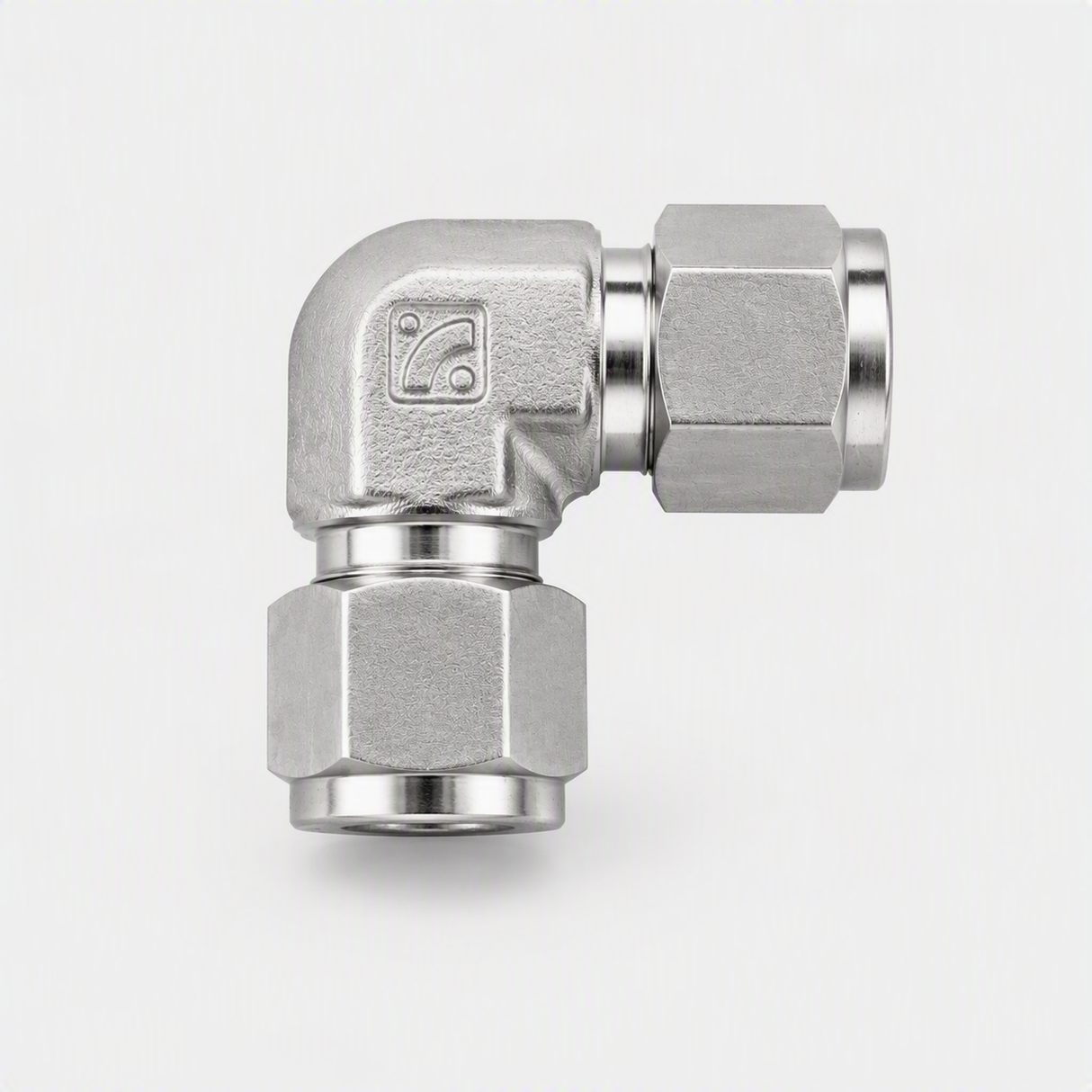

The Superlok SUE Union Elbow provides a secure, right-angle connection between two lengths of tubing. Designed for high-pressure instrumentation and process systems, it maintains a smooth, unobstructed flow path while delivering the strength and corrosion resistance of 316 stainless steel.
Key Features
- 90-degree tube-to-tube union for clean directional changes
- 316 stainless steel construction for maximum strength and corrosion protection
- Leak-tight performance for gas, liquid, and vacuum service
- High-pressure capability for demanding industrial and laboratory applications
- Meets or exceeds ASTM, ASME, and SAE standards
Applications
- Instrumentation and control systems
- Oil & gas and petrochemical processing
- Chemical and analytical equipment
- Semiconductor and research facilities
- General industrial fluid handling
Why Choose Superlok SUE
- Precision machining and strict tolerances ensure reliable, repeatable connections
- Fully interchangeable with other leading twin-ferrule tube fitting brands
- Designed for long service life even in corrosive or high-temperature environments
The Superlok SUE Union Elbow delivers durable, leak-tight 90-degree connections you can trust in critical systems where safety and performance are essential.
| Superlok | DK-Lok | Ham-Let | Hoke | Hylok | Parker | Swagelok |
|---|---|---|---|---|---|---|
| SUE-1-SS | DL-1-S | 765L SS 1/16 X 1/16 | 1LU316 | CLA-1-S316 | 1EE1-316 / 1-1 EBZ-SS | SS-100-9 |
| SUE-2-SS | DL-2-S | 765L SS 1/8 X 1/8 | 2LU316 | CLA-2-S316 | 2EE2-316 / 2-2 EBZ-SS | SS-200-9 |
| SUE-3-SS | DL-3-S | 765L SS 3/16 X 3/16 | 3LU316 | CLA-3-S316 | 3EE3-316 / 3-3 EBZ-SS | SS-300-9 |
| SUE-4-SS | DL-4-S | 765L SS 1/4 X 1/4 | 4LU316 | CLA-4-S316 | 4EE4-316 / 4-4 EBZ-SS | SS-400-9 |
| SUE-5-SS | DL-5-S | 765L SS 5/16 X 5/16 | 5LU316 | CLA-5-S316 | 5EE5-316 / 5-5 EBZ-SS | SS-500-9 |
| SUE-6-SS | DL-6-S | 765L SS 3/8 X 3/8 | 6LU316 | CLA-6-S316 | 6EE6-316 / 6-6 EBZ-SS | SS-600-9 |
| SUE-8-SS | DL-8-S | 765L SS 1/2 X 1/2 | 8LU316 | CLA-8-S316 | 8EE8-316 / 8-8 EBZ-SS | SS-810-9 |
| SUE-10-SS | DL-10-S | 765L SS 5/8 X 5/8 | 10LU316 | CLA-10-S316 | 10EE10-316 / 10-10 EBZ-SS | SS-1010-9 |
| SUE-12-SS | DL-12-S | 765L SS 3/4 X 3/4 | 12LU316 | CLA-12-S316 | 12EE12-316 / 12-12 EBZ-SS | SS-1210-9 |
| SUE-14-SS | DL-14-S | 765L SS 7/8 X 7/8 | 14LU316 | CLA-14-S316 | 14EE14-316 / 14-14 EBZ-SS | SS-1410-9 |
| SUE-16-SS | DL-16-S | 765L SS 1 X 1 | 16LU316 | CLA-16-S316 | 16EE16-316 / 16-16 EBZ-SS | SS-1610-9 |
| SUE-20-SS | DL-20-S | 765L SS 1 1/4 X 1 1/4 | 20LU316 | CLA-20-S316 | 20EE20-316 / 20-20 EBZ-SS | SS-2000-9 |
| SUE-24-SS | DL-24-S | 765L SS 1 1/2 X 1 1/2 | 24LU316 | CLA-24-S316 | 24EE24-316 / 24-24 EBZ-SS | SS-2400-9 |
| SUE-32-SS | DL-32-S | 765L SS 2 X 2 | 32LU316 | CLA-32-S316 | 32EE32-316 / 32-32 EBZ-SS | SS-3200-9 |
Specifications
Specifications
-
CategoryTube Fittings
-
Sub-CategoryElbows
-
Product TypeUnion Elbow
-
ConnectionFractional Tubes
-
Fitting ShapeElbow
-
MaterialStainless Steel
-
SeriesSUE
-
Data Sheet
