SRPC - Stub Tube - Reducing Port Connection
Ships Within: 48 Hours
SRPC - Stub Tube - Reducing Port Connection - Reducing Port Connector 1/8" Tube x 1/16" Tube is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Volume Discounts Available: Register/Login Here
Can't Find What You're Looking For? Contact Us Here
SRPC - Stub Tube - Reducing Port Connection
Description
Description

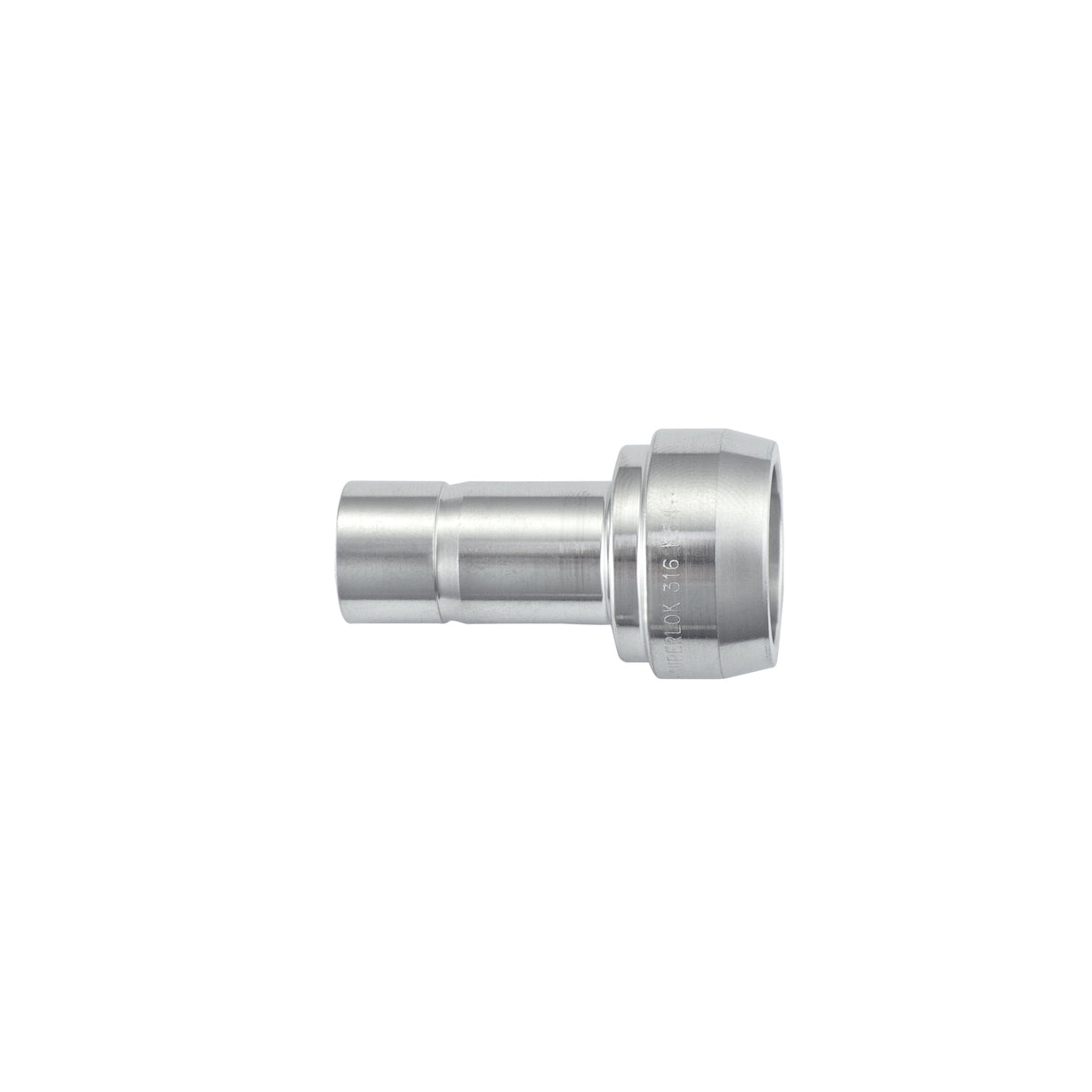

Superlok SRPC – Reducing Port Connector
The Superlok SRPC Reducing Port Connector provides a compact, leak-tight way to connect two tubes of different outside diameters in a straight line.
It maintains full flow through a precision-machined body while adapting from a larger tube O.D. on one end to a smaller O.D. on the other.
Made from 316 stainless steel, the SRPC offers corrosion resistance and reliability for high-pressure gas, liquid, or vacuum service.
Key Features
• Straight union with two different tube O.D. sizes
• 316 stainless steel construction for strength and corrosion protection
• Compatible with standard fractional tubing (inch sizes)
• Intermixable and interchangeable with other leading instrumentation fittings
Applications
• Instrumentation and analytical systems
• Oil & gas, chemical, and petrochemical processing
• Semiconductor process lines
• General industrial and laboratory fluid systems
Cross-Reference Chart – SRPC Reducing Port Connector
| Superlok (SRPC-SS) | Hy-Lok (CRPC-S316) | Swagelok (SS-RPC) | Parker A-LOK (RPC Series) | DK-Lok (DRPC Series) |
|---|---|---|---|---|
| SRPC-2-1-SS | CRPC-2-1-S316 | SS-200-RPC-1 | 2RPC1-316 | DRPC-2-1-316 |
| SRPC-4-1-SS | CRPC-4-1-S316 | SS-400-RPC-1 | 4RPC1-316 | DRPC-4-1-316 |
| SRPC-4-2-SS | CRPC-4-2-S316 | SS-400-RPC-2 | 4RPC2-316 | DRPC-4-2-316 |
| SRPC-6-2-SS | CRPC-6-2-S316 | SS-600-RPC-2 | 6RPC2-316 | DRPC-6-2-316 |
| SRPC-6-4-SS | CRPC-6-4-S316 | SS-600-RPC-4 | 6RPC4-316 | DRPC-6-4-316 |
| SRPC-8-4-SS | CRPC-8-4-S316 | SS-810-RPC-4 | 8RPC4-316 | DRPC-8-4-316 |
| SRPC-8-6-SS | CRPC-8-6-S316 | SS-810-RPC-6 | 8RPC6-316 | DRPC-8-6-316 |
| SRPC-12-8-SS | CRPC-12-8-S316 | SS-1210-RPC-8 | 12RPC8-316 | DRPC-12-8-316 |
| SRPC-16-8-SS | CRPC-16-8-S316 | SS-1612-RPC-8 | 16RPC8-316 | DRPC-16-8-316 |
| SRPC-16-12-SS | CRPC-16-12-S316 | SS-1612-RPC-12 | 16RPC12-316 | DRPC-16-12-316 |
Specifications
Specifications
-
CategoryTube Fittings
-
Sub-CategoryStub Tube Connector
-
Product TypeReducer, Port Connector
-
ConnectionFractional Port to Male AN
-
Fitting ShapeStraight
-
MaterialStainless Steel
-
SeriesSRPC
-
Data Sheet
