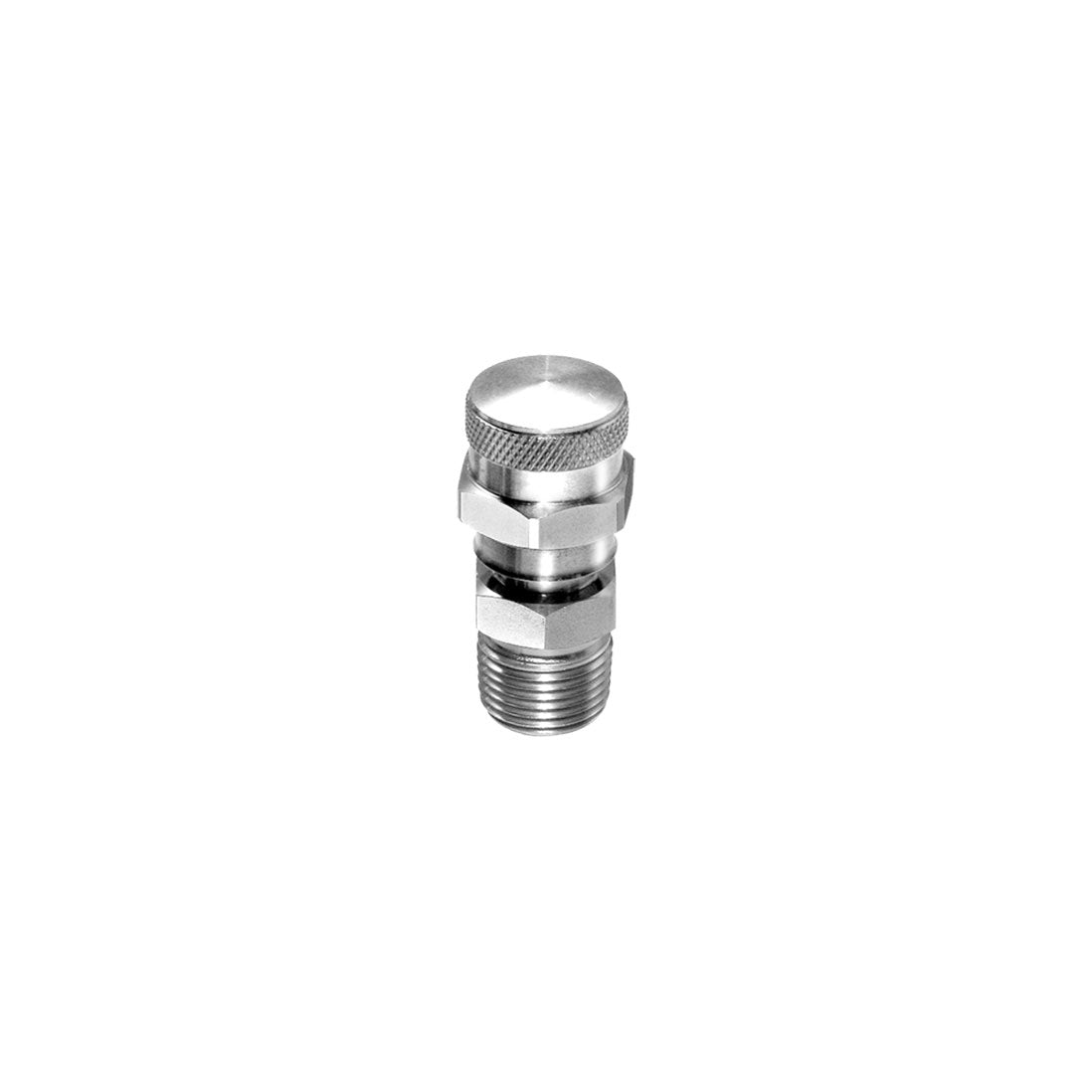

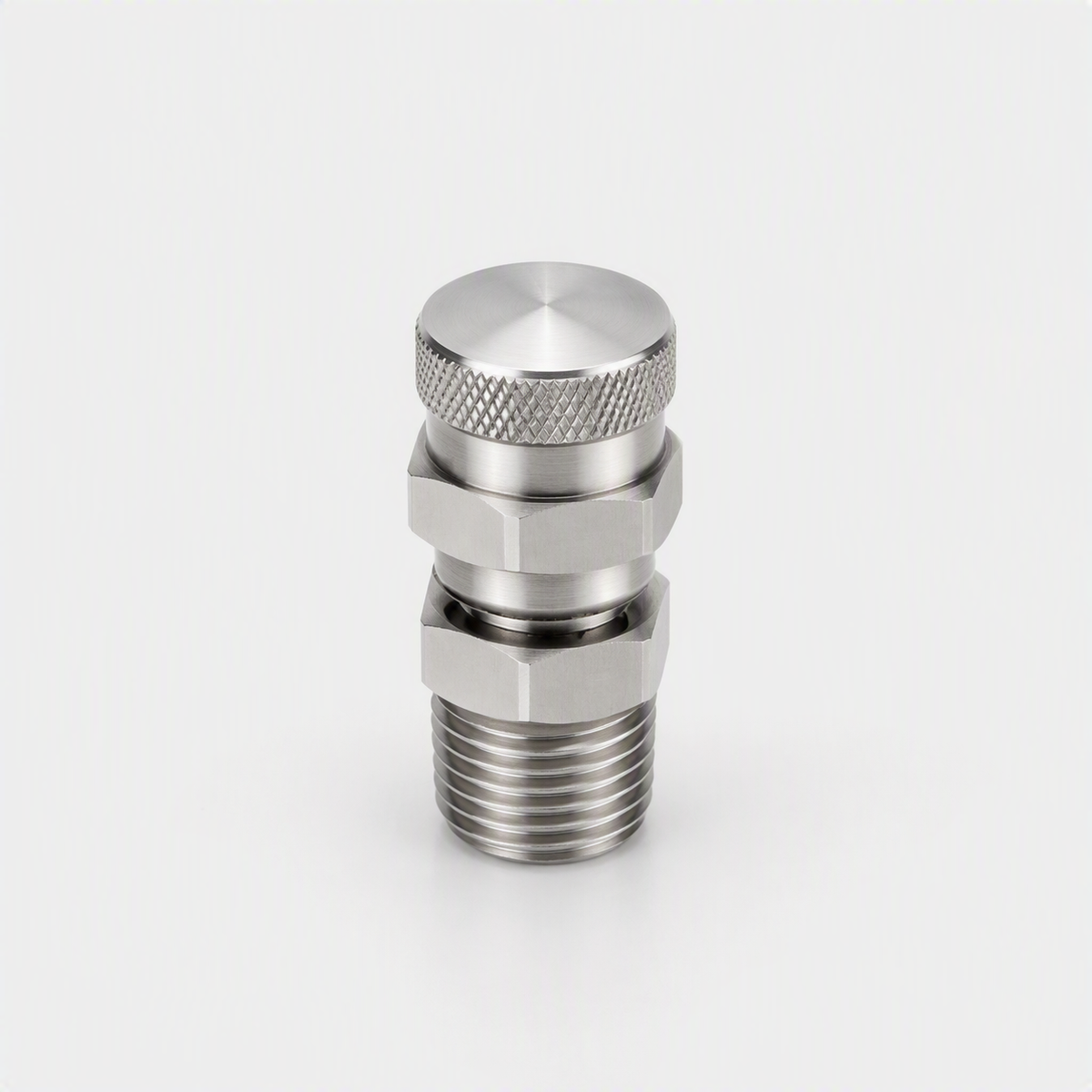

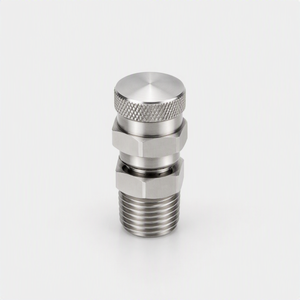

SPUV Purge Valve
SPUV Purge Valve - SPUV, purge valve, SS, 4000psi, 1/8" MNPT end is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Can't Find What You're Looking For? Contact Us Here
SPUV Purge Valve
Description
Description
Applications

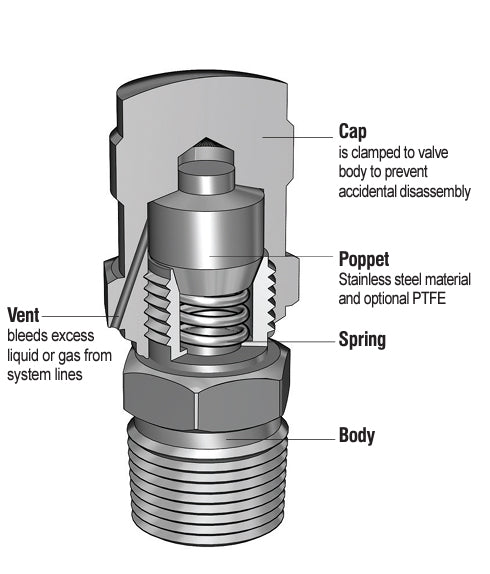

SUPERLOK purge valves are manual bleed, vent, or drain valves. One-quarter turn with a wrench from finger-tight obtains leak-tight closure on first makeup. Snugging with a wrench ensures closure to the rated pressure with subsequent makeups.
Features
- Compact for convenient installation.
- Excess liquid or gas in system lines is bled through the vent hole.
- Cap is crimped to valve body to prevent accidental disassembly.
- Variety of end connections available: Superlok compression, NPT, and ISO threads.
Caution
When installing a SUPERLOK purge valve, position the vent hole to direct system fluid away from operating personnel. Discharge direction changes when cap is turned. Always open purge valves slowly. These valves contain no packing, so some fluid weepage will occur when the valves are opened. Operating personnel must protect themselves from exposure to system fluids.
Specifications
Specifications
-
CategoryValves
-
Sub-CategoryPurge Valves
-
MaterialStainless Steel
-
SeriesSPUV
-
Pressure Rating4,000psig (275bar), @100℉ (38℃)
-
Temperature Rating-65 to 600℉, (-54 to 315℃)
-
Data Sheet
