Superlok | SKU: SPC-1-SS

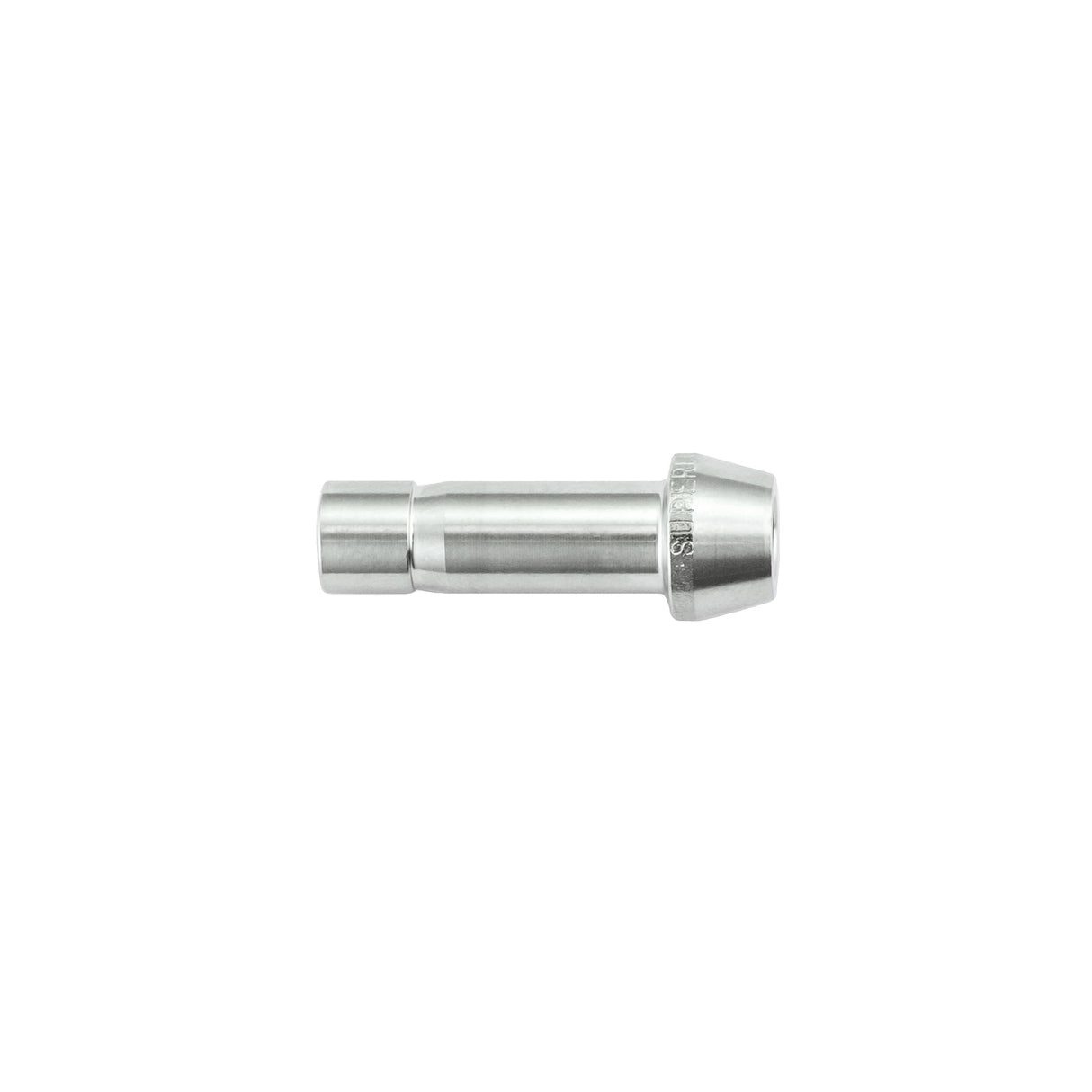

SPC - Stub Tube - Port Connector

Name: SPC - Stub Tube - Port Connector
Brand: Superlok
SKU: SPC-1-SS
Price: 21.0 CAD
Availability: InStock

$21.00 CAD

Stocked Items Ships Within: 48 Hours
(Delivery Confirmed After Order Placed)

Select

Product variants

Volume Discounts Available: Register/Login Here

Scroll down for options to buy multiple items.

Can't Find What You're Looking For? Contact Us Here

Description

Installation Instructions

Remove nut and ferrules from the first of two SUPERLOK ports to be connected.
Slip nut (no ferrules) over machined ferrule end of port connector.
Insert port connector into SUPERLOK port 1 and snug by hand. Tighten with wrench 1/4 turn only. For 1/8, 3/16 in., 2, 3, and 4mm tube fittings, tighten only 1/8 turn. Subsequent connections are made by tightening slightly with a wrench after tightening by hand.
Insert other end of port connector into SUPERLOK port 2 and tighten nut 1-1/4 turns from finger-tight. For 1/16, 1/8, 3/16 in., 2, 3, and 4mm tube fittings, only 3/4 turn from finger-tight is necessary.
