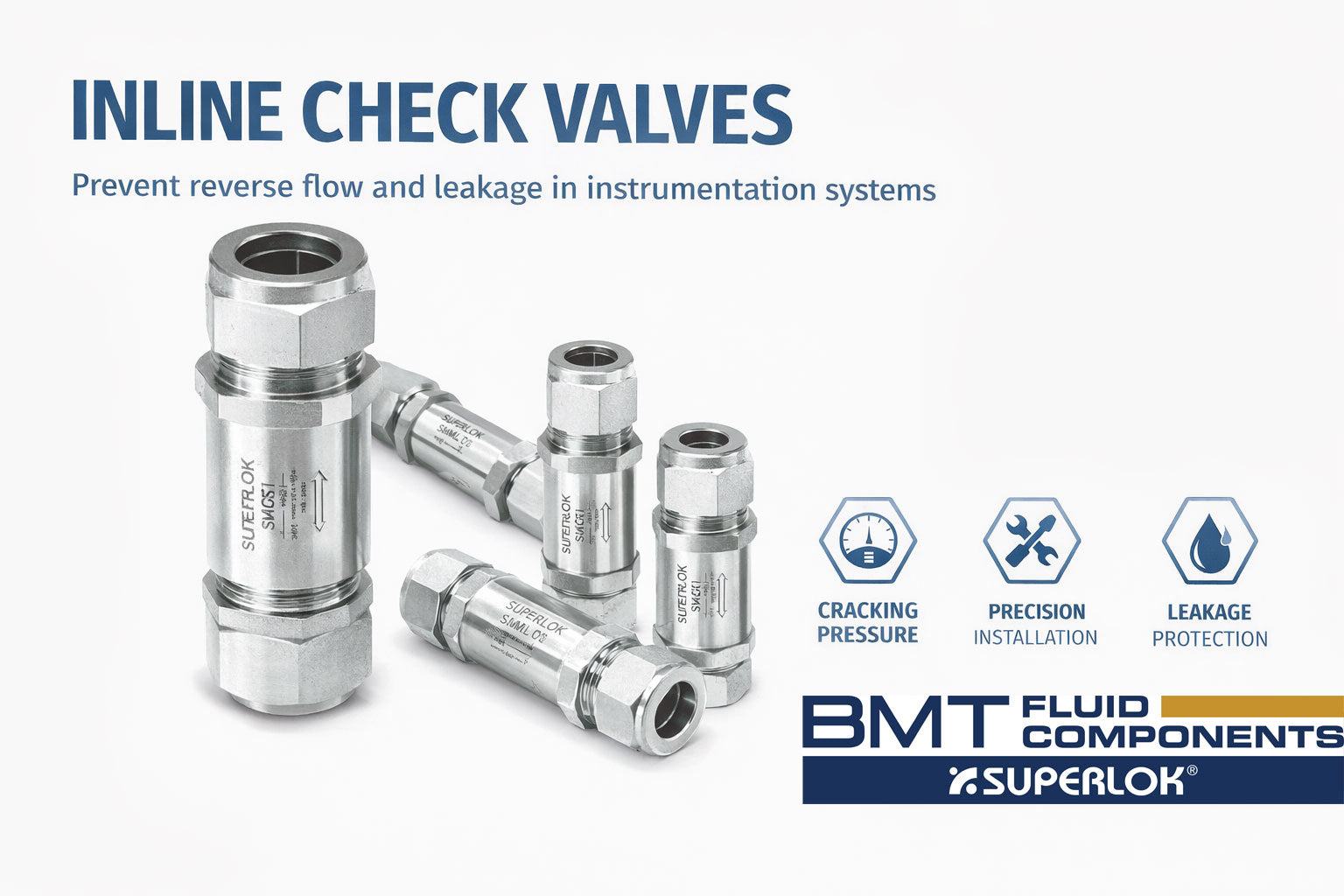

In instrumentation systems, uncontrolled backflow can compromise accuracy, damage sensitive components, and create safety risks. Check valves play a critical role in maintaining one-directional flow and protecting downstream equipment. Selecting the right check valve requires more than choosing a size. Cracking pressure, seal materials, orientation, and service conditions all directly impact performance.
This guide walks through how check valves work, common instrumentation designs, and practical selection and installation considerations for industrial applications.
What a Check Valve Does
A check valve allows flow in one direction and automatically prevents reverse flow when differential pressure drops or reverses. In instrumentation systems, check valves are commonly used to:
- Protect pressure gauges and transmitters from pressure spikes
- Prevent backflow contamination in sampling systems
- Maintain system integrity during shutdowns or pressure loss
- Isolate parallel flow paths
Superlok check valves are designed to provide reliable backflow prevention in fluid and gas systems, supporting stable system performance in demanding industrial environments.
Common Check Valve Styles in Instrumentation
Instrumentation check valves are typically compact, spring-loaded designs optimized for low flow and precise control. Common Superlok styles include:
Fixed Cracking Pressure Check Valves
- Pre-set spring force determines opening pressure
- Simple, reliable design
- Factory tested for cracking and reseal performance
- Suitable for stable, known operating conditions
Fixed cracking pressure designs are commonly used where system pressures are predictable and do not require field adjustment. Examples include the SPCV and SOCV check valve series , which are widely used in instrumentation and industrial fluid systems.
Adjustable Cracking Pressure Check Valves
- External adjustment allows tuning cracking pressure
- Useful during commissioning or process changes
- One-piece body designs available
- Each valve is factory tested
The SOACV adjustable check valve series allows cracking pressure to be set within a defined range, supporting flexible system requirements without changing valve hardware.
Cracking Pressure Explained
Cracking pressure is the differential pressure at which the check valve first allows flow. Below this pressure, the valve remains closed.
- Cracking pressure operates within a tolerance range
- Lower cracking pressures reduce pressure drop but may require back pressure to reseal
- Reseal pressure is typically lower than cracking pressure
- Very low cracking pressure designs may require downstream pressure for bubble-tight shutoff
Superlok check valves are factory tested for both cracking pressure and reseal performance to ensure consistent operation in service.
Orientation and Flow Direction
Check valves must always be installed in the correct flow direction. Most instrumentation check valves include a clearly marked flow arrow on the body.
- Horizontal versus vertical installation
- Gravity effects on low cracking pressure designs
- Accessibility for inspection or replacement
While many spring-loaded check valves can operate in multiple orientations, vertical installations may influence effective cracking pressure depending on spring force and system pressure conditions.
Seal Considerations and Service Conditions
Seal material selection is critical for long-term reliability and leak-free performance. Superlok check valves are available with multiple elastomer options to support different temperature ranges and media compatibility.
- Operating temperature range
- Chemical compatibility with process media
- Cleanliness requirements in semiconductor and analytical systems
- Cycling frequency and pressure fluctuations
Installation Checklist
- Confirm flow direction arrow matches system flow
- Verify cracking pressure aligns with operating conditions
- Ensure end connections match tubing or pipe specifications
- Flush the system to remove debris before installation
- Avoid inducing mechanical stress during assembly
- Follow proper torque and assembly procedures
Common Causes of Leakage or Backflow
- Incorrect cracking pressure selection
- Debris or particulate contamination
- Seal incompatibility with process media
- Incorrect flow direction installation
- Insufficient back pressure on low cracking pressure designs
- Excessive cycling or vibration
When to Use Adjustable vs Fixed Cracking Pressure
Use fixed cracking pressure when:
- System pressures are well defined
- No field adjustment is required
- Simplicity and repeatability are priorities
Use adjustable cracking pressure when:
- Commissioning conditions vary
- Future process changes are expected
- Multiple operating scenarios must be supported
- Fine tuning is required without replacing hardware
Call to Action
Superlok offers a full range of instrumentation check valves designed for reliability, leak-free performance, and compatibility with existing systems.
